LED Divelight
This is a relative new project and is only in the design phase.
The idea is to use 7 Seoul P4 led’s and a narrow lens to get a narrow and focused beam. My initial tests with one led is that I hope to get about 30.000 lux at one meter distance using 7 led’s at 1000mA.
I tried using a 7-lens cluster with 7 led’s at 1000mA but this cluster lens was very ineffective. I only got about 4500 lux at one meter compared to 5000 lux with only one led using the larger lens.
Here are some pictures from the experiments:
 |

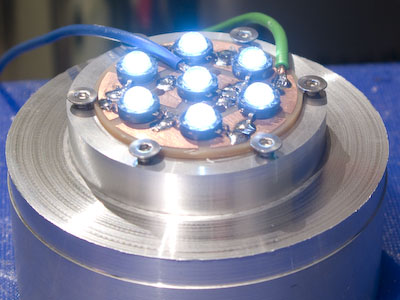

Seven led's on a custom made circuit board. The led’s are arranged to fit the cluster lens witch was a disappointment. |
 |
The cluster lens. With this lens you get the same amount of light from 7 led’s as you get using one led and a large single lens. |
 |
The large lens placed on the center led. This is the way to go. I will have to make a new circuit board to use this lens for all seven led's. |
